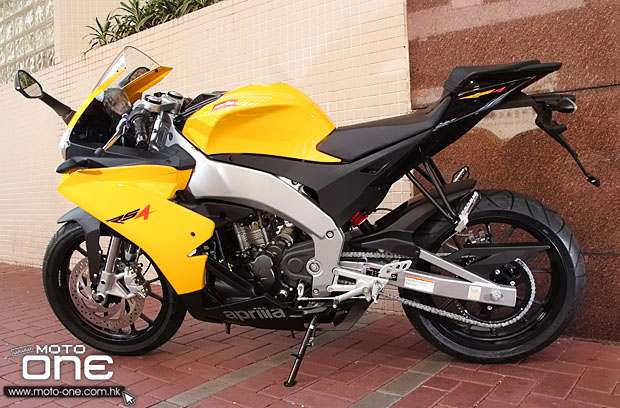

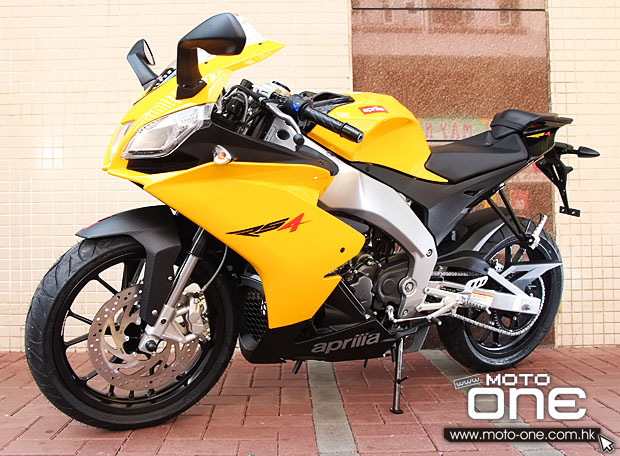

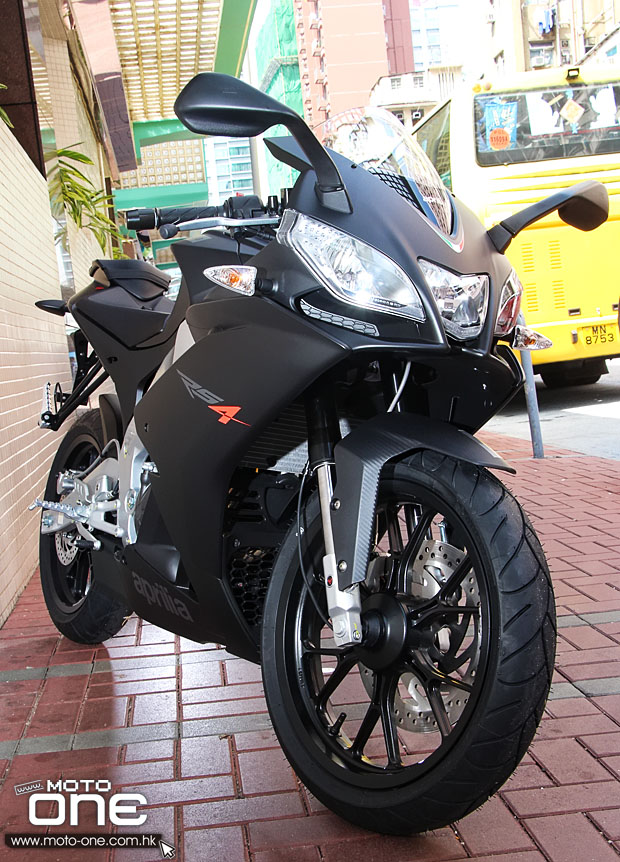

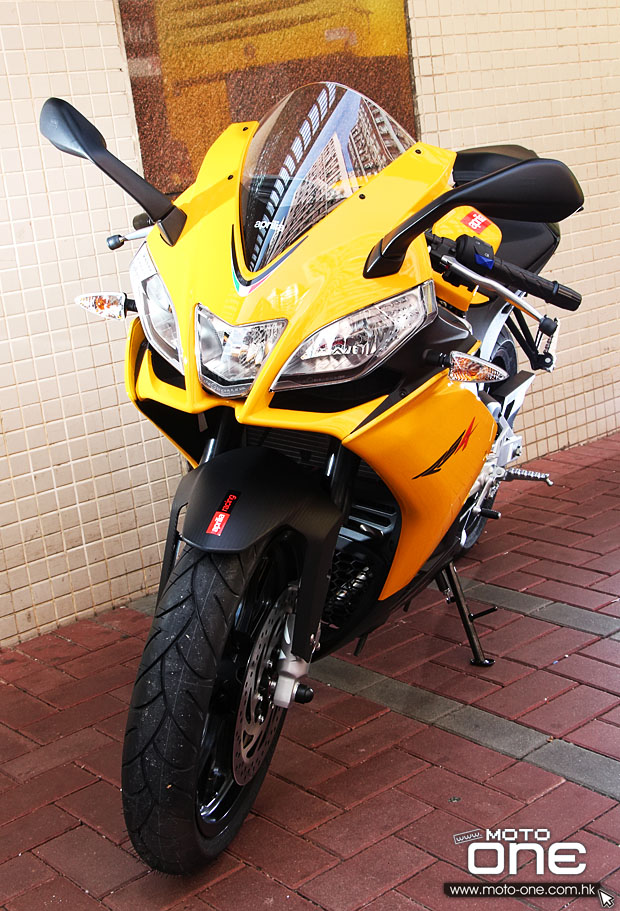

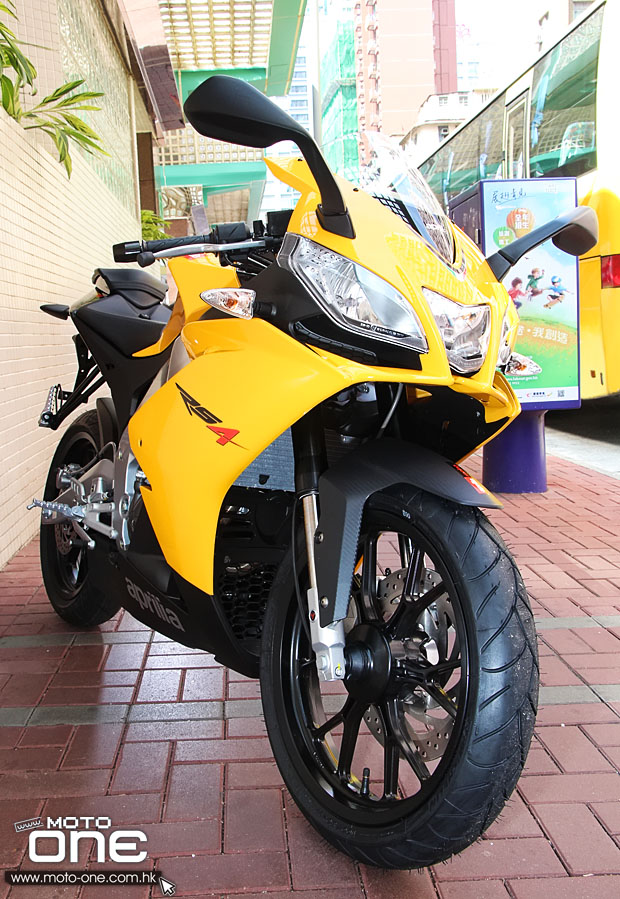

| 2013 Aprilia RS4 125 規格表 |
| 呎吋 SIZE |
| 全長 Length |
1,953mm |
| 全闊 Width |
740mm |
| 全高 Height |
1,138mm
|
| 軸距 Centre to centre distance |
1,350mm |
| 座位高度 Saddle height |
820mm |
| 最低離地距 Height from the ground |
- |
| 淨重 Dry weight |
- |

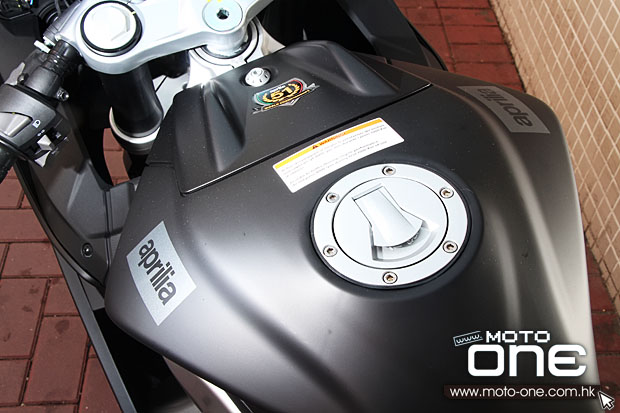

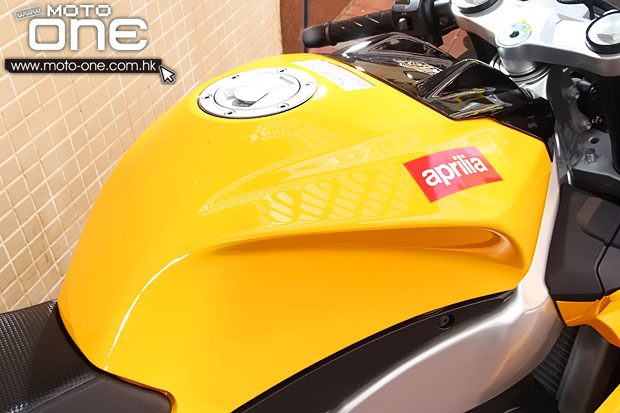

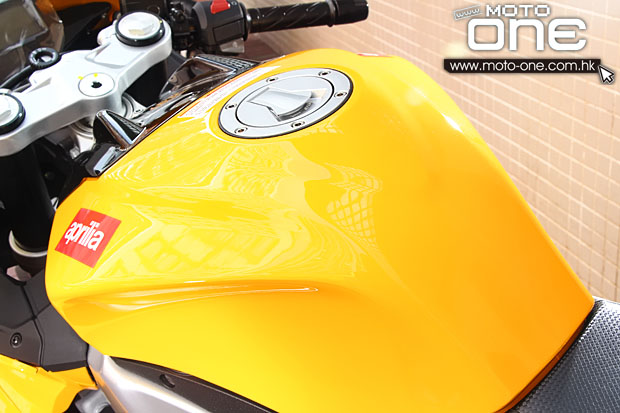

| 油箱容量 Fuel tank capacity |
14.5L |

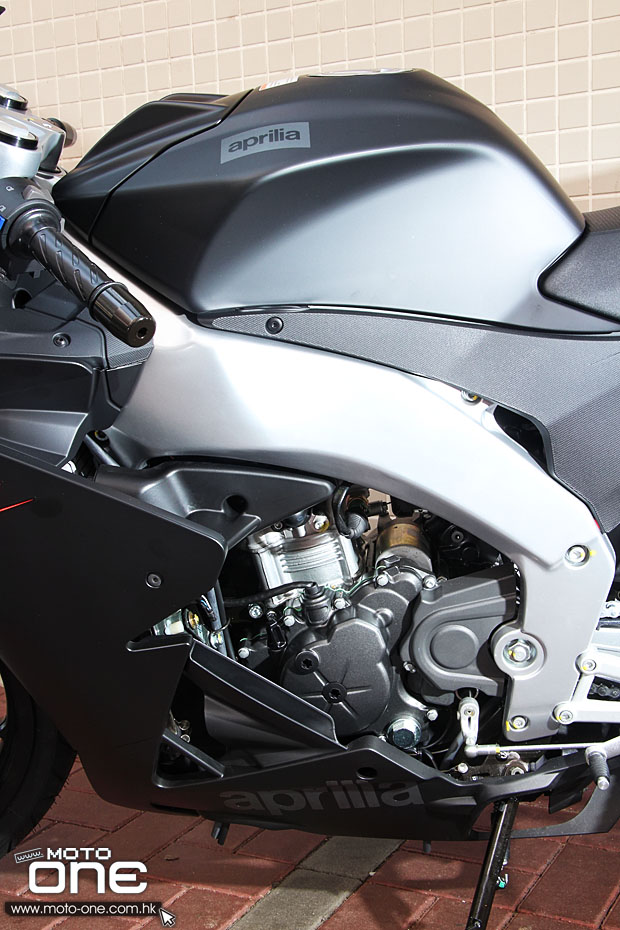

| 引擎 ENGINE |
| 引擎模式 Engine |
水冷四衝程DOHC單汽缸4汽門
Four stroke liquid cooled single cylinder with electronic injection and 4 valves. |
|
排氣量 Total displacement
|
125c.c. |
| 最大馬力 Max. power at the crank |
- |
最大扭力 Max. torque at the crank
|
- |
| 壓縮比 Compression ratio |
12.5 ± 0.5 : 1 |
| 缸徑x衝程 Bore x Stroke |
58mm x 47mm |
| 供油系統 Fuel system |
電子燃油噴注系統
electronic injection system |
| 前傾角 Steering angle |
- |
| 拖曳距 Trail |
- |
| 起動 Starting |
電動 Electric |
| 傳動系統 Gear box |
濕式多片6前速，鍊條傳動
6-speeds , Chain. |
| 車身 CHASSIS |

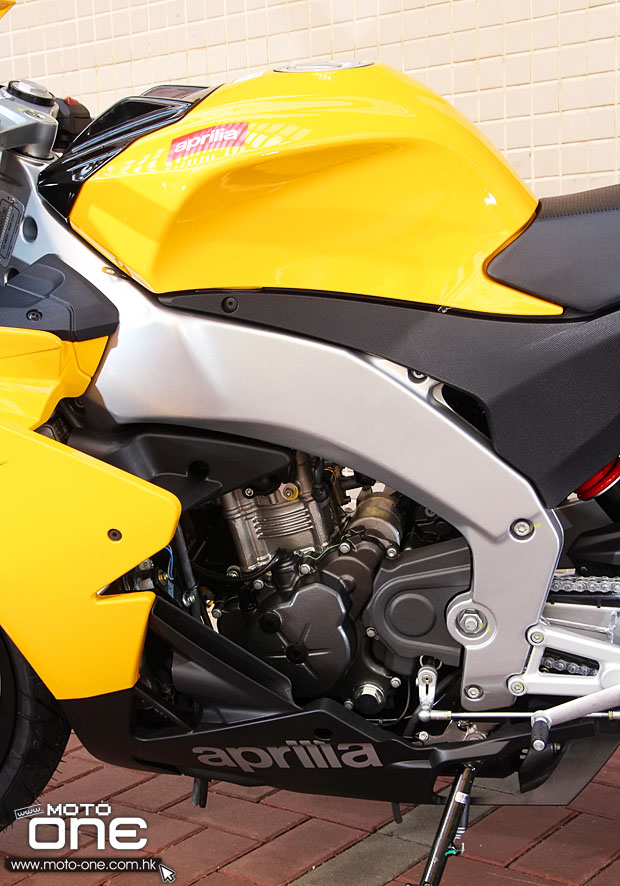

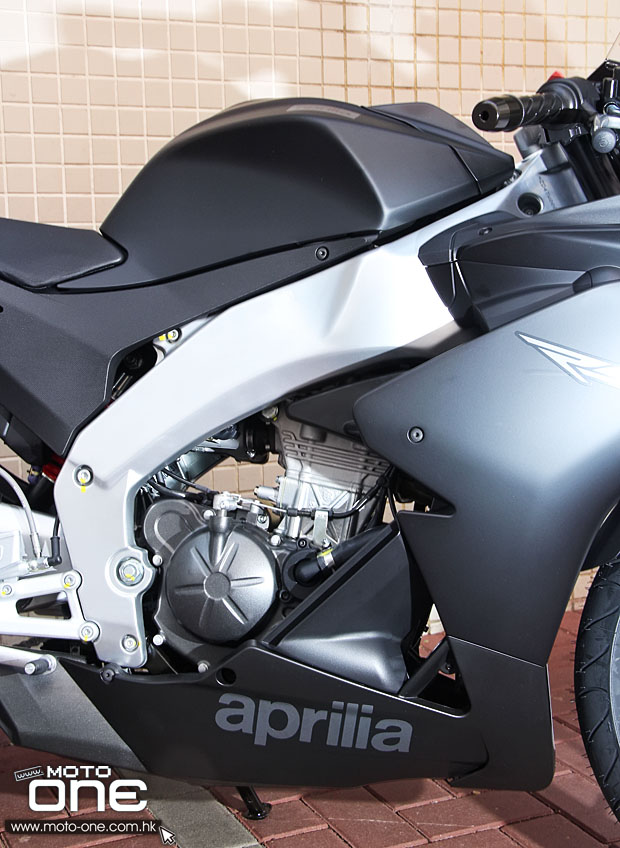

| 車架型式 Frame |
鋁合金雙樑車架
Aluminium perimeter frame |
| 前懸掛系統 Front suspension |
直徑41mm倒立前叉，110mm行程
41 mm upside down fork, wheel excursion 110 mm
|

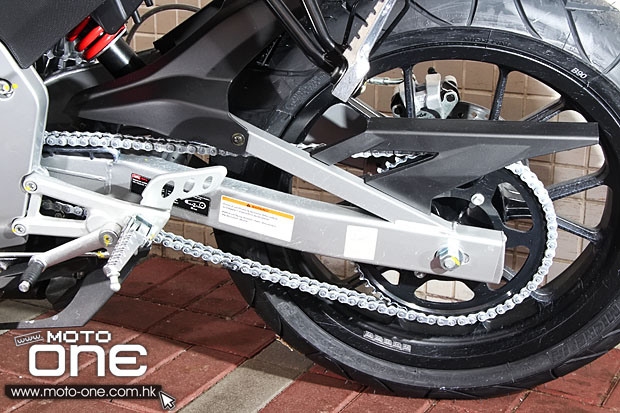

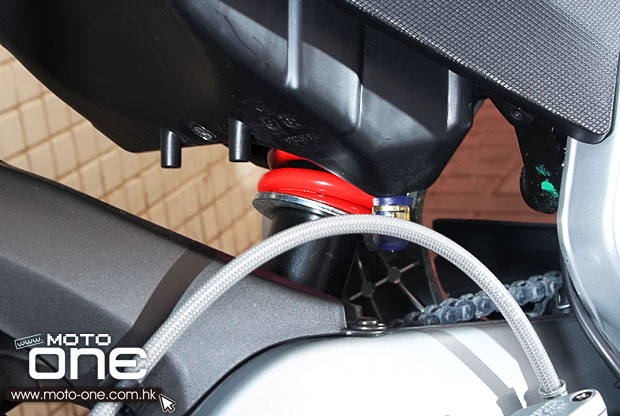

後懸掛系統 Rear suspension
|
單筒油壓尾避震，130mm行程
Asymmetric swingarm with monoshock, wheel travel 130 mm |

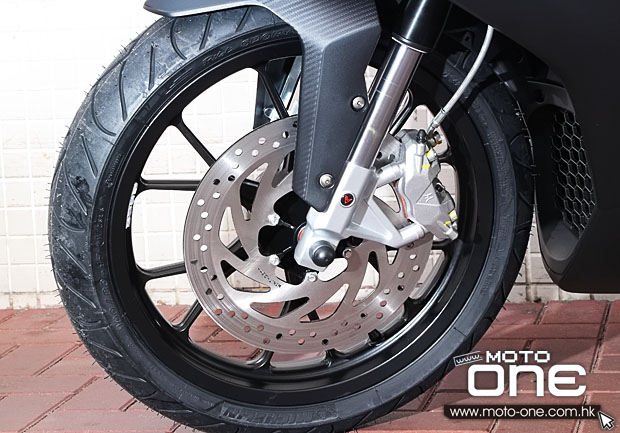

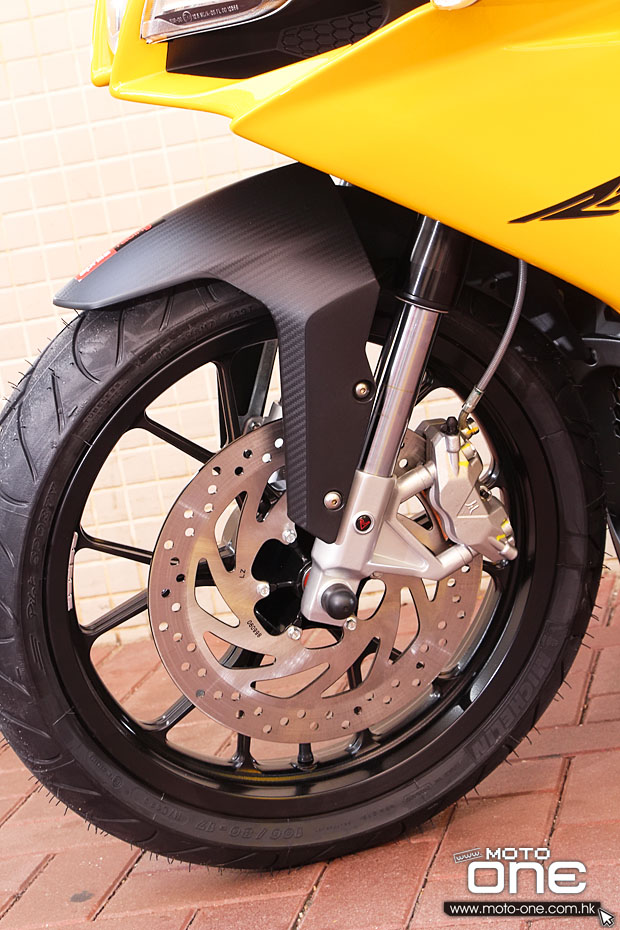

前制動系統 Front Brakes
|
300mm鑽孔浮動碟配4活塞式卡鉗
300 mm stainless steel disc with radial 4 piston calliper |

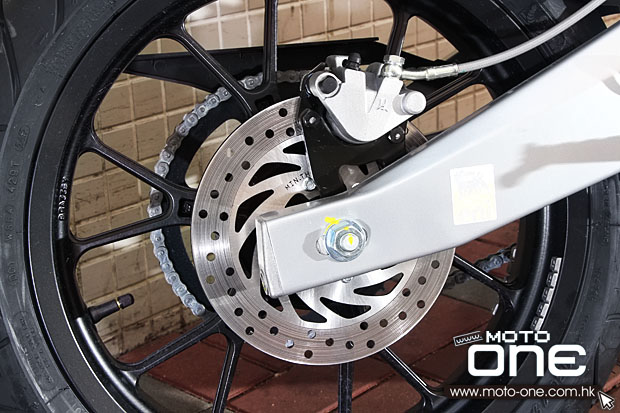

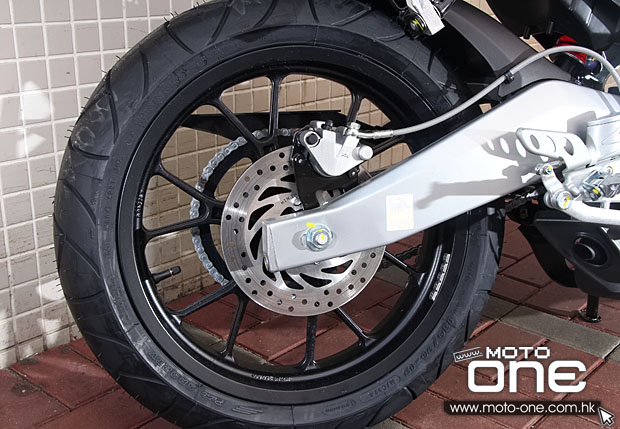

後制動系統 Rear Brakes
|
218mm鑽孔浮動碟配單活塞式卡鉗
218 mm stainless steel disc and calliper with single 30 mm piston
|
| 前輪胎 Front Tyres |
110/70 ZR17 |
| 後輪胎 Rear Tyres |
150/60 ZR17 |
