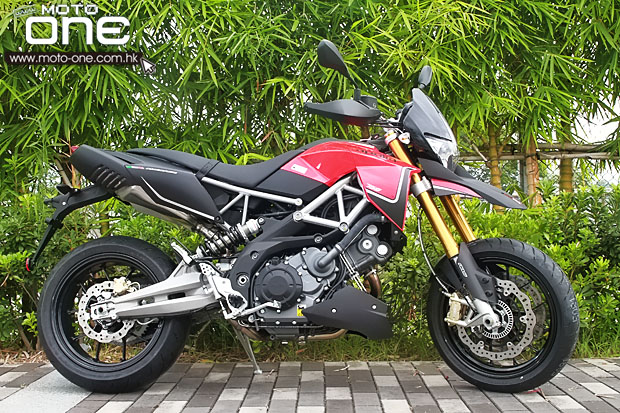

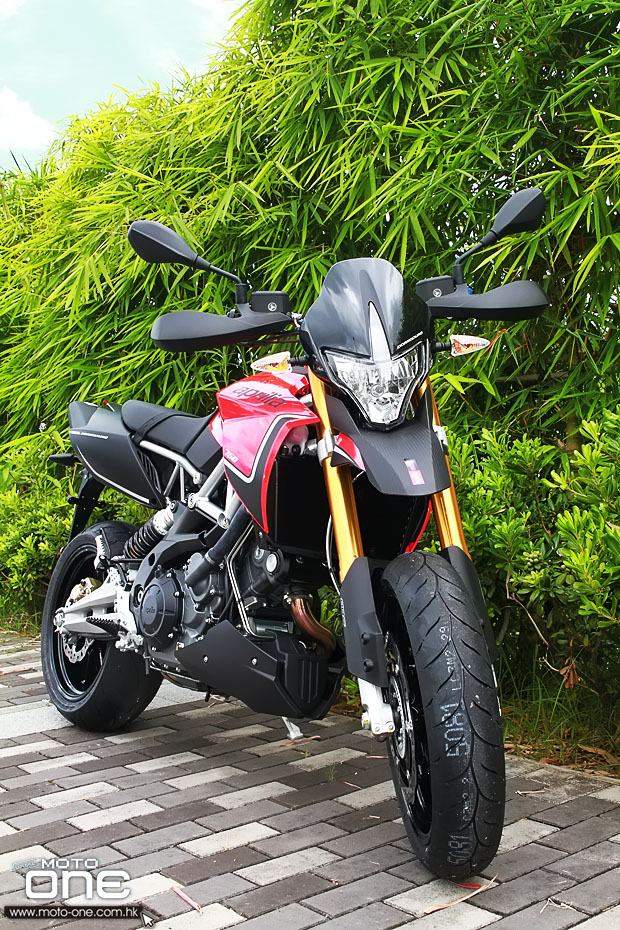

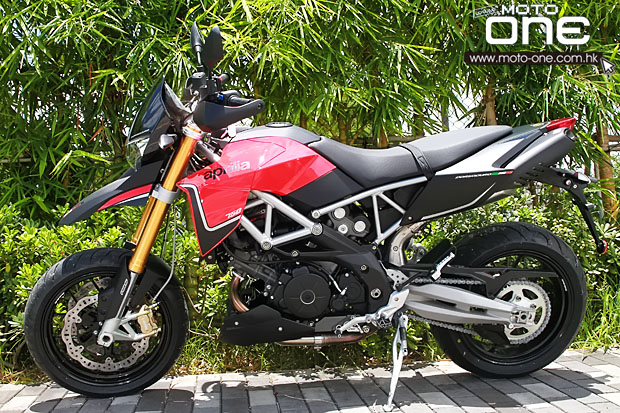

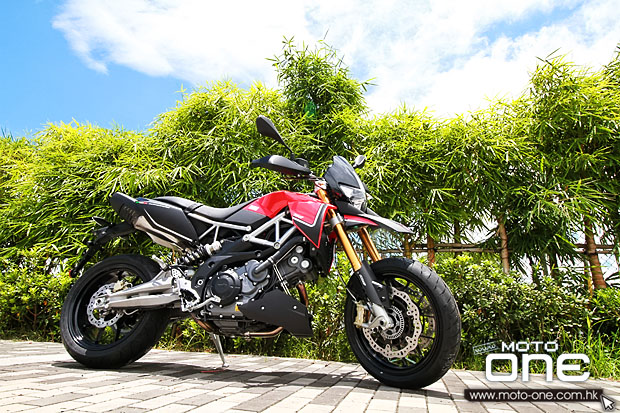

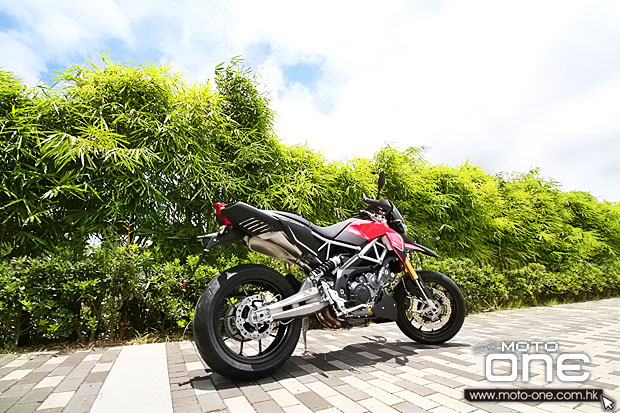

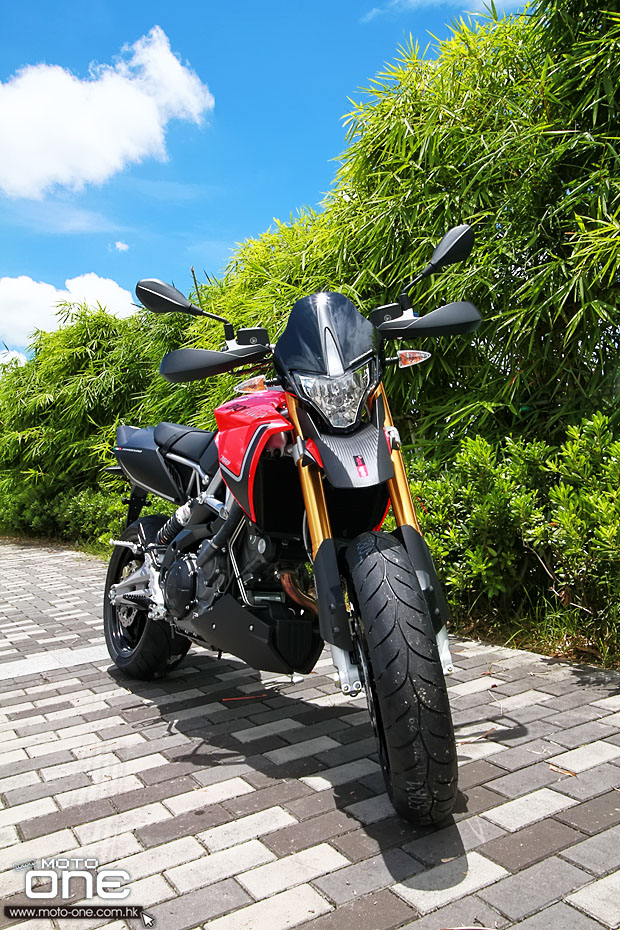

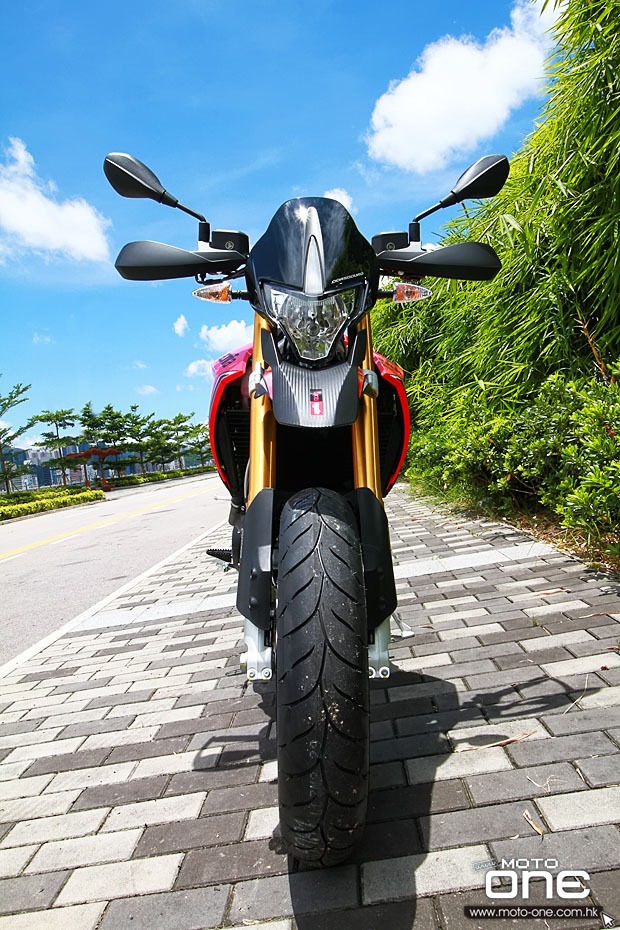

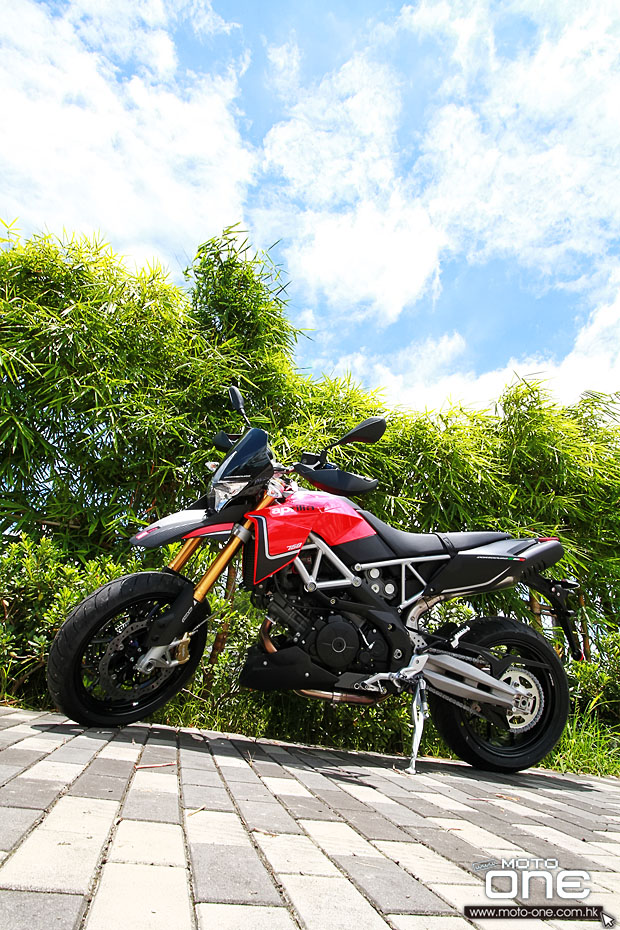

| 2014 Aprilia DORSODURO 750 ABS規格表 |
| 呎吋 SIZE |
| 全長 Length |
2,216mm |
| 全闊 Width |
905mm |
| 全高 Height |
1,185mm |
| 軸距 Centre to centre distance |
1,505mm |

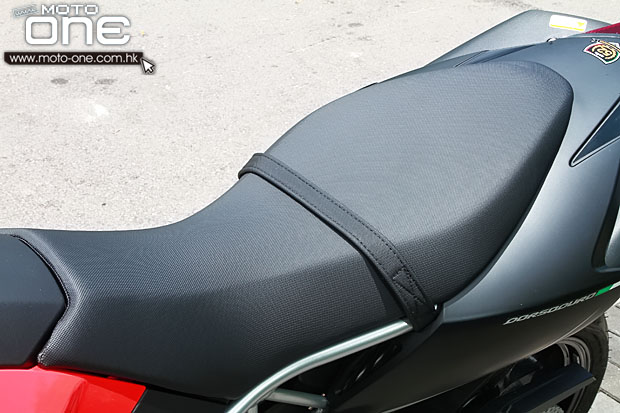

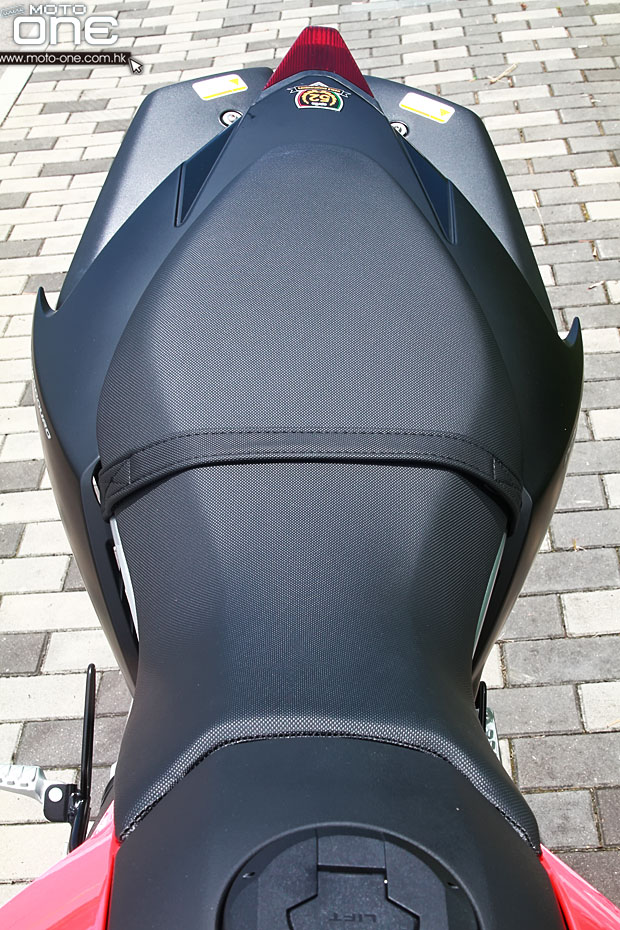

| 座位高度 Saddle height |
870mm |
| 最低離地距 Height from the ground |
- |
| 淨重 Dry weight |
186kg |
| 油箱容量 Fuel tank capacity |
12L |
| 引擎 ENGINE |
| 引擎模式 Engine |
水冷四衝程縱向90度V型雙汽缸DOHC 8氣門
Aprilia V90 four-stroke longitudinal 90° V-twin engine, liquid cooled, double overhead camshafts with mixed gear/chain timing system, four valves per cylinder. |
|
排氣量 Total displacement
|
749.9c.c. |
| 最大馬力 Max. power at the crank |
92ps / 8,750rpm |
最大扭力 Max. torque at the crank
|
8.4kg-m / 4,500rpm |
| 壓縮比 Compression ratio |
11.0 : 1 |
| 缸徑x衝程 Bore x Stroke |
92mm x 56.4mm |
| 供油系統 Fuel system |
綜合引擎管理系統燃油噴注
Integrated engine management system. Injection system
|
| 前傾角 Steering angle |
26° |
| 拖曳距 Trail |
108mm |
| 起動 Starting |
電動 Electric |
| 傳動系統 Gear box |
濕式多片6前速，鍊條傳動
6-speeds , Chain. |
| 車身 CHASSIS |

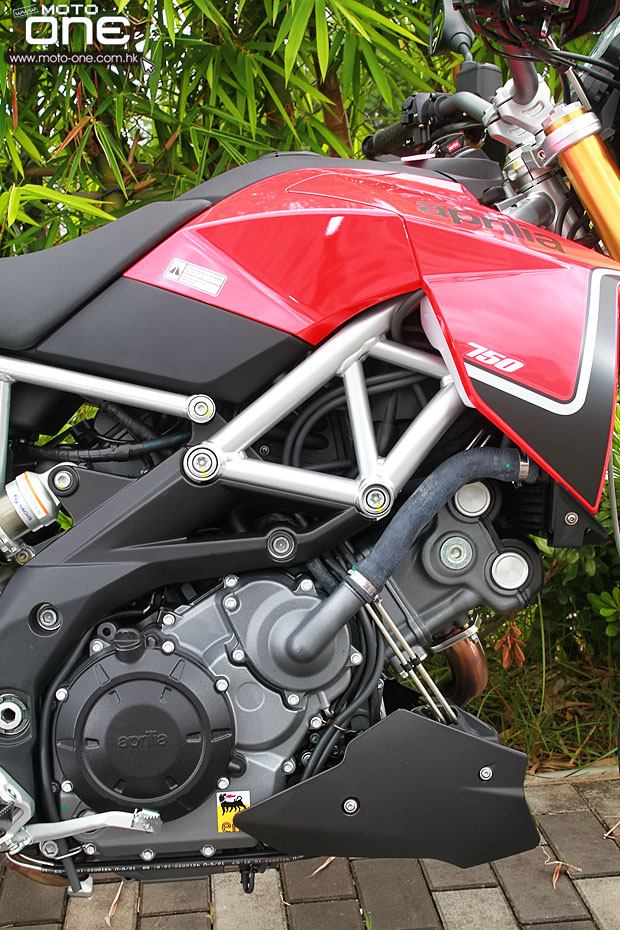

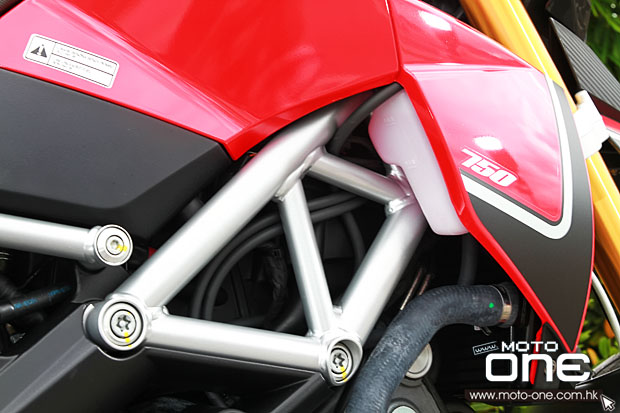

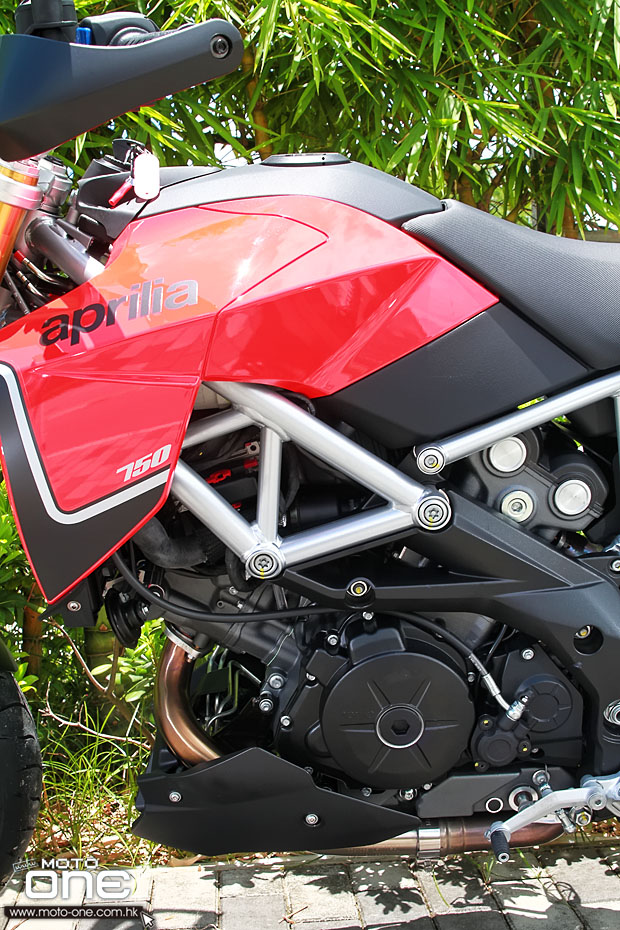

| 車架型式 Frame |
綑桿式高拉力鋼管車架

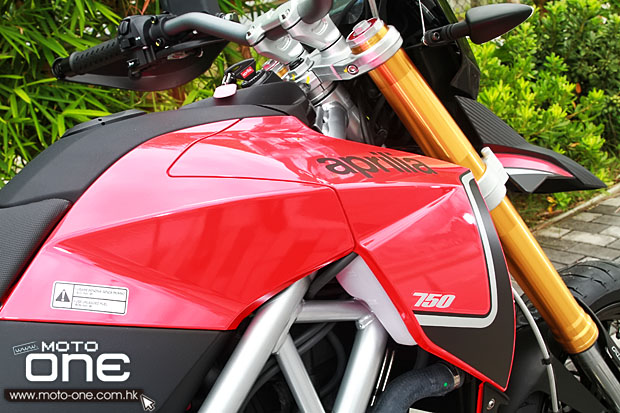

Modular steel trellis secured to aluminium side plates by high strength bolts. Detachable rear frame.
|

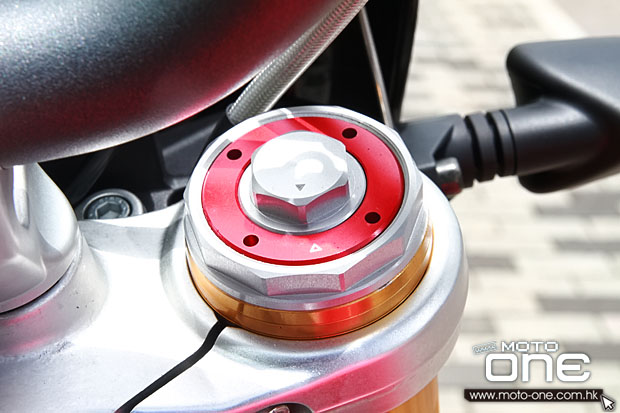

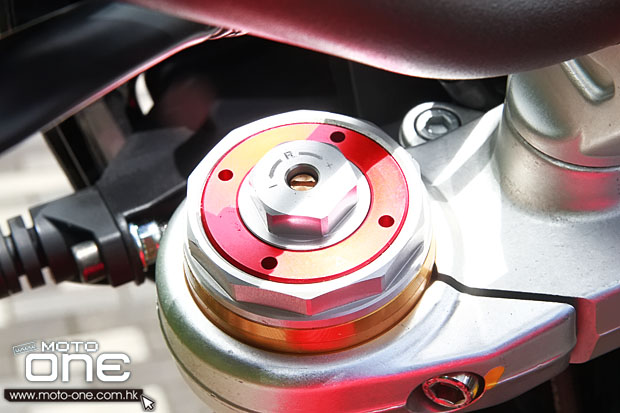

| 前懸掛系統 Front suspension |
直徑 43mm 倒立前叉，行程160mm
43 mm upside-down fork. 160 mm wheel travel.
|

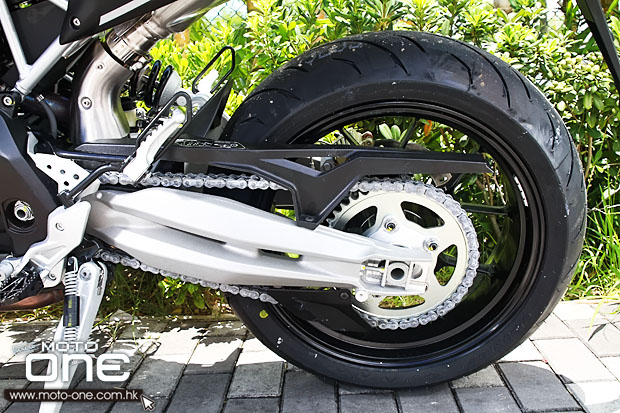

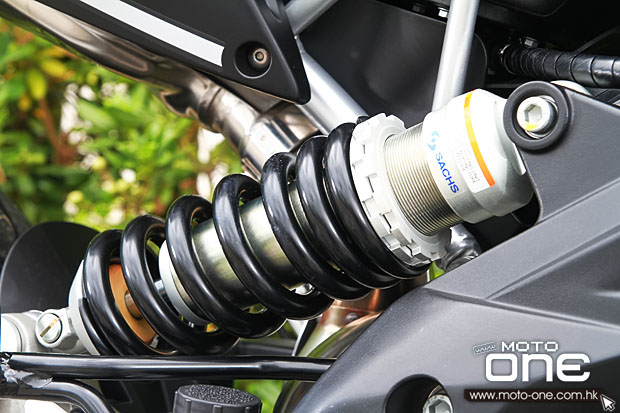

後懸掛系統 Rear suspension
|
Sachs單筒油壓彈簧，附調校功能，160mm行程
Sachs Aluminium alloy swingarm. Hydraulic shock absorber adjustable in spring preload and rebound damping. Wheel travel: 160 mm |

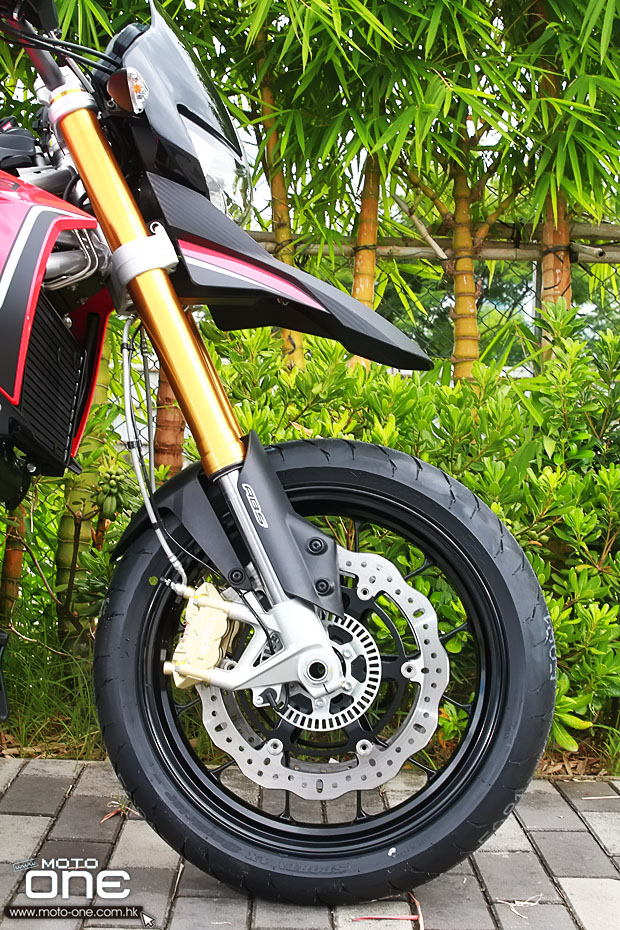

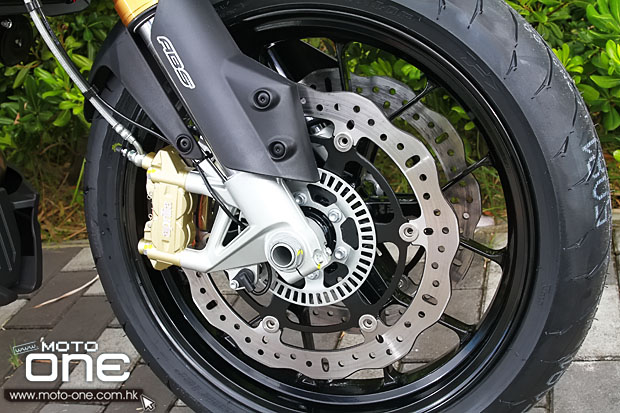

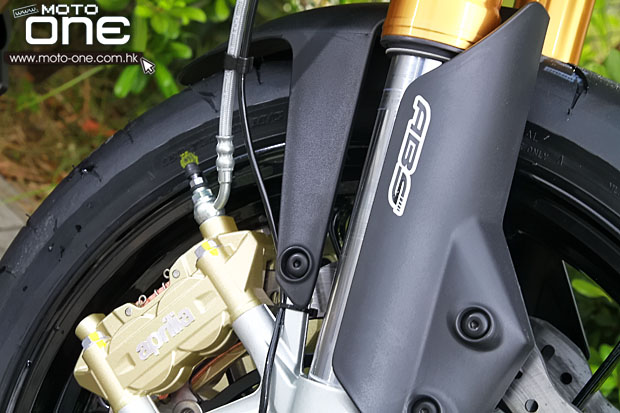

前制動系統 Front Brakes
|
320mm雙菊花碟配四活塞放射式卡鉗，附ABS
Double stainless steel floating disc (Ø 320 mm). Four-piston radial calipers. Metal braided brake line.ABS
|

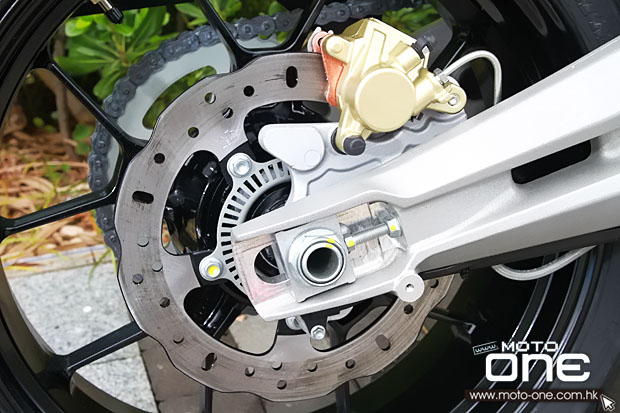

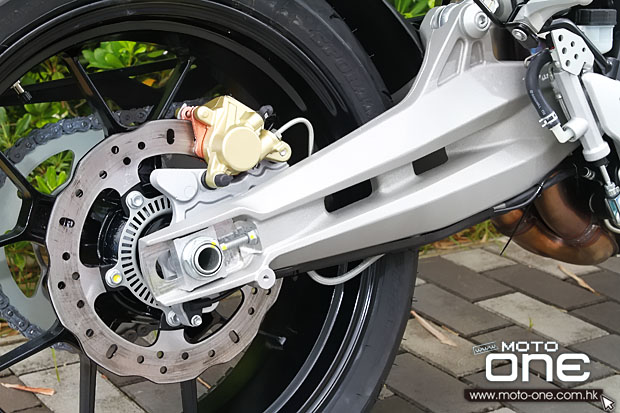

後制動系統 Rear Brakes
|
240mm單菊花碟配單活塞卡鉗，附ABS
Stainless steel disc (diam. 240 mm) with single piston caliper. Metal braided brake line. ABS
|
| 前輪胎 Front Tyres |
120/70 ZR17 |
| 後輪胎 Rear Tyres |
180/55 ZR17 |
